EUROSWITCH销售中心
| 法兰 – Flange | ||
|---|---|---|
| 2NC 失棕色/BROWN ORANGE 3C |
1 NO 开白色/WHITE | |

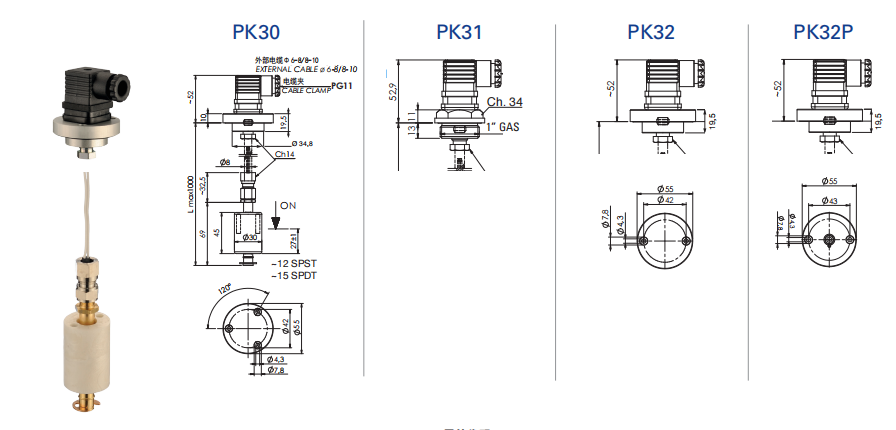

| 3 孔 – 3 holes | PK30082 – 100 | PK30082 – 500 |
| 1″ Gas | PK31082 – 100 | PK31082 – 500 |
| 2 孔 – 2 holes | PK32082 – 100 | PK32082 – 500 |
| 翻转浮球可切换关/开 The contact can be converted from N.C. to N.O. by rotating the float upside down |
||
| SPDT触电 – SPDT Contact | ||
| 客户可利用提供的固定件，通过一根直径为 8 x 6 mm 的黄铜管将传感器的两个部分连接起来，自行构建一个PK液位传感器。黄铜管必须由客户提供。必须用组装系统接地装置进行紧固。 PK level sensor can be built by the customer connecting the two parts of the sensor with a brass tube 8 x 6 mm diameter, using the olive fittings provided. The tube must be provided by the customer. Grounding must be fasten by assembling system |
