983带 LED 电子压差指示器

视觉输出参数表
表格 Table 1: Visual Output
范围 / Range (%FS) color
If T>T* (TLO)
0÷50 绿色或闪烁绿色/green or flashing green (1Hz)
50÷75 黄色或闪烁黄色/yellow or flashing yellow (1Hz)
75÷100 橙色或闪烁橙色/orange or flashing orange (1Hz)
>100 红色或闪烁红色/red or flashing red (1Hz)
范围 / Range (%FS) color
If T
0÷100 blue
传感器参数表
使用 工业应用 Use Industrial applications

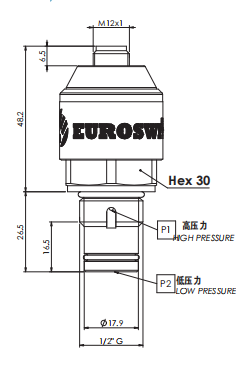

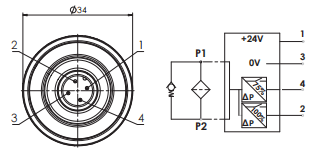

Pin1 电压24 V±10% Pin1 Power supply 24 V±10%
Pin2 100%的数字输出2开始标定
FS - PNP - 最大负荷0.2A-NO
Pin2 Digital output 2 calibrated at 100%-PNP-Max Load 0.2A-NO
Pin3 0V - GND Pin3 0V - GND
Pin4 75%的数字输出1开始标定
FS - PNP - 最大负荷0.2A-NO
Pin4 Digital output 1 calibrated at 75%-PNP-Max Load 0.2A-NO
时间 启动时间= 3s;
响应时间:模拟输出-0.4s
Time Activation time = 3s;
Response time: analogue Out -0.4s
热损耗 T*= 20°C±2°(根据要求温度值可调节) Thermal Lock Out T*= 20°C±2° (others on request)
注意 如果T Note: if T
精度/热漂移 25°C精度 = 最大FS的±5%(根据考虑的门槛)
热漂移(范围 T*÷70°C)= FS的±6% 最大
Accuracy/Thermal drift Accuracy at 25° = max±5%FS (depending on the set point);
Thermal drift (range T*÷70°C) = max±6%FS
数字输出 Digital output
介质 油-空气 Medium Oil - Air
机体 黄铜 (AISI可要求) Case Brass (AISI on request)
工作温度范围 -20°C ÷ +80°C Working temperature range -20°C ÷ +80°C
测量范围 (差压) 2 ÷ 8巴 Measuring ranges (Differential pressure) 2 ÷ 8 bar
机械工作寿命 10⁵活塞版本 Mechanical working life 10⁵ cycles
最大工作压力 350 ÷ 450巴 (350 ULCSA版本
根据螺纹不同
Max working pressure 350 ÷ 450 bar (350 ULCSA version
depending on the thread
螺纹 1/2″ Gas (可根据要求订制) Thread 1/2″ Gas (others on request)
最大扭力 50-70 Nm Tightening torque 50-70 Nm
连接器 M12 x 5 PIN Connector M12 x 5 PIN
防护等级 IP67 Protection degree IP67
重量 ~ 140 g Approx. weight ~ 140 g
