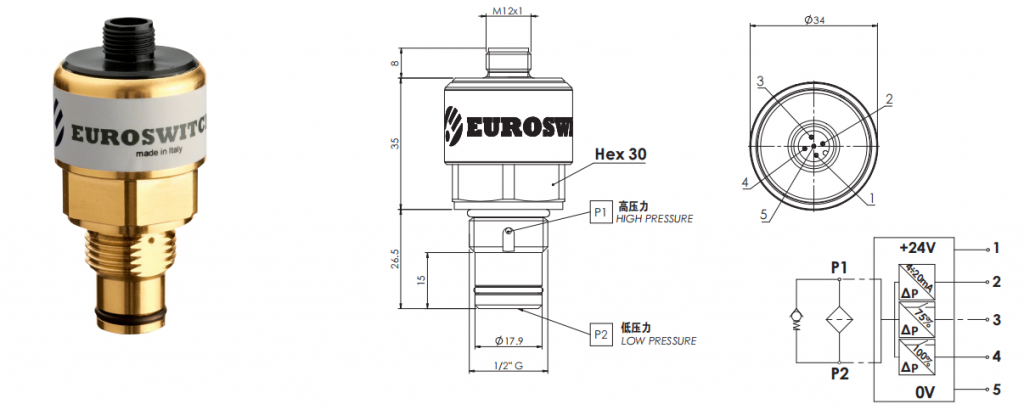

4-20 mA电子差压变送器

设备参数表
中文参数 参数值 英文参数 参数值
使用 工业应用 Use Industrial applications
Pin1 电压24 V±10% Pin1 Power supply 24 V±10%
Pin2 模拟输出范围4÷20mA
(见注意1和见注意2)
Pin2 Analogue Output 4÷20mA
(see note 1 and note 2)
Pin3 75%的数字输出1开始标定
FS – PNP – 最大负荷0,2A-NO
(见注意2)
Pin3 Digital output 1 calibrated at 75%-PNP-Max Load 0,2A-NO
(see note 2)
Pin4 100%的数字输出2开始标定
FS – PNP – 最大负荷0,2A-NO
(见注意2)
Pin4 Digital output 2 calibrated at 100%-PNP-Max Load 0,2A-NO
(see note 2)
Pin5 0V – GND Pin5 0V – GND
注意1 输入≥FS的25%
如果输入≤FS的25% 模拟输出是4mA恒定的
Note 1 For input ≥25%FS;
For input≤25%FS Analogue signal output is constant at 4mA
注意2 25°C精度 = 最大FS的±5%
热漂移(范围T*÷70°C) = FS的 ±6% 最大
Note 2 Accuracy at 25°C max±5% FS;
Thermal drift (range T*÷70°C) max±6% FS
时间 启动时间=3s
响应时间:模拟输出-0.2s, 数字输出-0.1s
Time Activation time = 3s;
Response time: Analogue Out -0.2s, Digital Out -0.1s
热损耗 T* = 20°C±2°(根据要求温度值可调节) Thermal Lock Out T* = 20°C±2° (others on request)
注意 如果T Note if T
介质 油-空气 Medium Oil – Air
机体 黄铜 (AISI要求) Case Brass (AISI on request)
工作温度范围 -20°C ÷ +80°C Working temperature range -20°C ÷ +80°C
测量范围 (差压) 2 ÷ 8巴 Measuring ranges (Differential pressure) 2 ÷ 8 bar
机械工作寿命 10⁵活塞版本 Mechanical working life 10⁵ cycles
最大工作压力 350 ÷450巴 (350 UL CSA版本)
根据螺纹不同
Max working pressure 350 ÷ 450 bar (350 UL CSA version)
depending on the thread
螺纹 1/2” Gas (可根据要求订制) Thread 1/2” Gas (others on request)
最大扭力 50-70 Nm Tightening torque 50-70 Nm
连接器 M12 x 5 PIN Connector M12 x 5 PIN
防护等级 IP67 Protection degree IP67
重量 ~ 140 g Weight ~ 140 g
