温度-压力开关

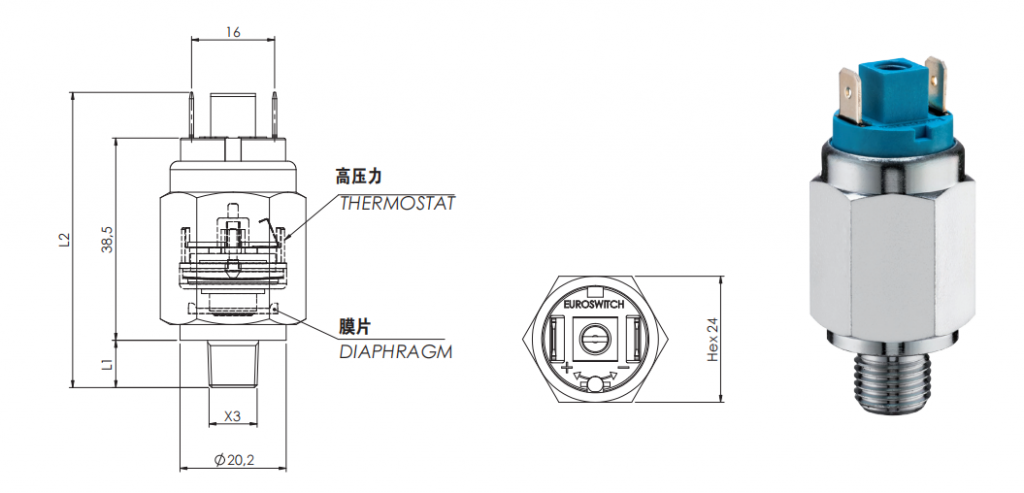

P700该温度压力开关由具有 NO 或 NC 触点的可调膜片式压力开关和内置固定设置的双金属恒温器组成,其触点与压力开关的触点相连。NC 触点并联,NO 触点串联。该装置的设计目的是几乎同时测量流体相对于设定值的温度和压力。适用于各种液压回路以及液压过滤器,避免了低温启动典型的误报警。

设备参数表
中文参数 参数值 英文参数 参数值
机体 镀锌钢 Case Zinc plated steel
电触点 镀银 AgNi Electrical contacts Silver AgNi
最大开关电压 48 Vac – a richiesta 250 Vac Max switching voltage 48 Vac – 250 Vac on request
最大开关电流 0,5 (0,2) A Max switching current 0,5 (0,2) A
液体最高温度 100°C Max fluid temperature 100°C
机械工作寿命 10⁵ (1-10 巴) Mechanical working life 10⁵ (1-10 bar)
电气工作寿命 10⁵ Electrical working life 10⁵
启动条件 1B Action type 1B
最大扭力 30 Nm Tightening torque max 30 Nm
防护等级 IP00 (见 16-17页) Protection degree IP00 (see pages 16-17)
螺纹 M12x1,5 (如需定制其他紧固版本请联系Euroswitch公司) Thread M12x1,5 (contact Euroswitch for other thread)
常开(紫色)常闭(蓝色)压力开关 NO (Bordeaux) / NC (BLUE) PRESSURE SWITCHES
转换压力 Tarato in Euroswitch (Range 1-10 bar) Switching pressure Set in Euroswitch (Range 1-10 bar)
最大超压限制 30 巴 Max overpressure limit 30 bar
膜片 HNBR (contattare Euroswitch per altri materiali) Diaphragm HNBR (contact Euroswitch for other material)
常开/常闭恒温器 NO / NC TEMPERATURE SWITCHES
启动温度 30°C +/- 5K differenziale 10/15 K Switching temperature : 30°C +/- 5K differential 10/15 K
温度变化频率 1/2 K/min Temperature change rate : 1/2 K/min
重量 ~ 75 g Weight ~ 75 g
