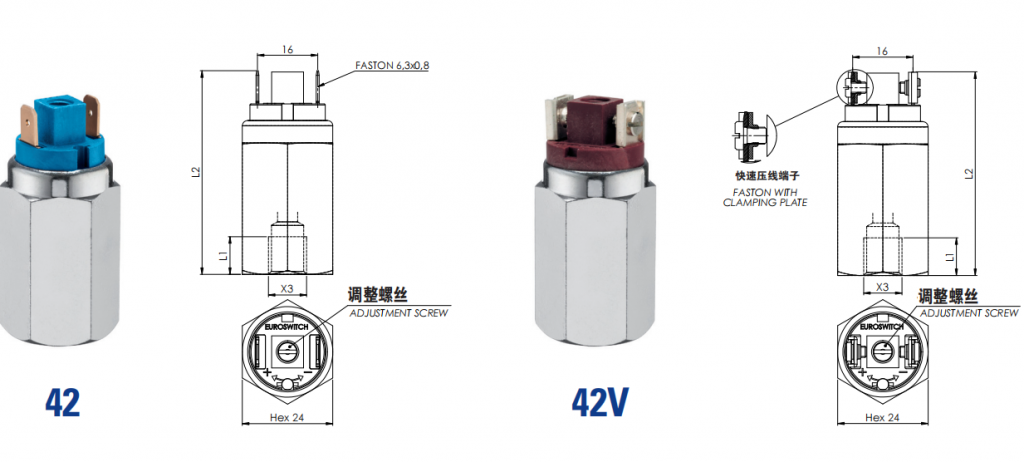

42 42V膜片压力开关≤48V - 内螺纹

设备参数表
电触点 – electrical contact 设定范围 / Setting range (巴 bar) 20°C下的公差 / Tolerance at 20°C (巴 bar)
常开 norm. open 常闭 norm. closed
42 (V) 1 0 42 (V) 2 0 0.1 – 1 ±0.1
42 (V) 1 A 42 (V) 2 A 0.2 – 2 ±0.15
42 (V) 1 1 42 (V) 2 1 1 – 5 ±0.3
42 (V) 1 2 42 (V) 2 2 1 – 10 ±0.5
42 (V) 1 3 42 (V) 2 3 10 – 20 ±1.0
42 (V) 1 4 42 (V) 2 4 20 – 50 (1) ±2.0
活塞 Case Material 螺纹 (X3) Threads (X3) 膜片 (见17页) Diaphragms(see page 17)
0 镀锌钢体 0 Zinc plated steel case 4 M12x1.5圆柱 1 NBR
1 黄铜 1 Brass 6 1/4″ Gas圆柱 2 FKM (标准)
2 AISI 316 *不锈钢 2 Stainless steel AISI 316 * 8 M10x1圆柱 3 EPDM CH
5 AISI 303 *不锈钢 5 Stainless steel AISI 303 * G 1/8″ Gas圆柱 4 CR
5 硅酮
6 HNBR
(V) = 快速压线端子 / faston with clamping plate
(1) 仅适用于镀锌本体 – Available only with body Zinc plated or Stainless steel
*标准G 1/4″ 圆柱 *Standard G1/4″ cylindrical
产品参数表
中文参数 中文说明 英文参数 英文说明
电触点 镀银 AgNi(可要求镀金) Electric contacts Silver AgNi, (gold plated on request)
电流状态 常开(紫色) 常闭(蓝色) Electrical conditions N.O. (bordeaux) N.C. (blu)
最大开关电压 48 Vac / dc Max switches voltage 48 Vac / dc
最大开关电流 0.5A(可要求2A) Max switches current 0.5 A (2A on request)
液体最高温度 80°至120°C(根据膜片) Max fluid temperature 80° to 120°C (depending on diaphragm)
机械工作寿命 10⁶活塞版本 Mechanical working life 10⁶ operations
电气工作寿命 10⁵活塞版本 Electrical working life 10⁵ operations
最大超压限制 镀锌钢 / 不锈钢 300巴
黄铜 80巴
Max Overpressure limit Zinc plated steel / Stainless steel 300 bar
Brass 80 bar
最大工作压力 镀锌钢 / 不锈钢 150巴
黄铜 40巴
Max Working pressure Zinc plated steel / Stainless steel 150 bar
Brass 40 bar
启动条件 1B Action type 1B
防护等级 IP00(见 18 – 20页保护盖和连接器) Protection degree IP 00 (see pages 18 – 20 for protection caps and connectors)
重量 ~ 125 g Weight ~125 g
