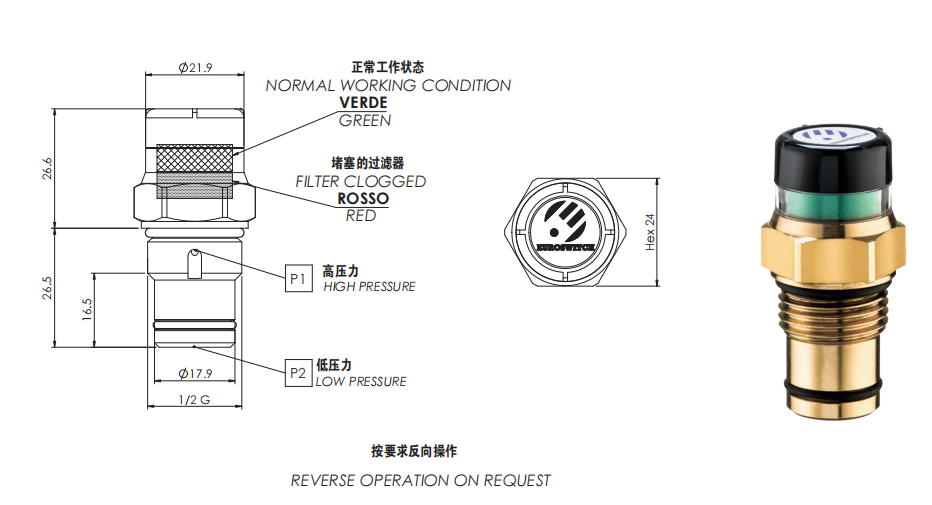

目视压差指示器 HEX 24

压力公差表
P1 高压力 / High Pressure
P2 低压力/Low Pressure
下的公差 – Tolerance
压力 – Pressure
1,3 Bar +/- 15%
2 Bar +/- 10%
2,5 Bar +/- 10%
3 Bar +/- 10%
5 Bar +/- 10%
设备参数表
中文参数 参数值 英文参数 参数值
介质 油-空气 Medium Oil – Air
机体 黄铜 Case Brass
盖子 高性能聚酰胺 Cap high performance Polyamid
光信号 绿色/红色 Visual signal Green/Red
螺纹 G 1/2”(可根据要求订制) Thread G 1/2” (other on request)
室温 -25°C / +80°C Ambient temperature -25°C / +80°C
流体温度 -30°C / +100°C Fluid temperature -30°C / +100°C
最大工作压力 350 ÷ 450巴
根据螺纹不同
Max working pressure 350 ÷ 450 bar
depending on the thread
启动条件 Action type magnetic
最大扭力 50-70 Nm (in funzione dell’attacco a processo) Tightening torque 50-70 Nm (depending on the thread)
启动速度 10 bar / 15 sec. Operating speed 10 bar / 15 sec.
重量 ~ 100 g Weight ~ 100 g
