电触点 – electrical contact | 设定范围 / Setting range (巴 bar) | 20°C下的公差 / Tolerance at 20°C (巴 bar) | |
---|---|---|---|
常开 norm. open | 常闭 norm. closed | ||
41(V) 1 0 | 41(V) 2 0 | 0.1 – 1 | ±0.1 |
41(V) 1 A | 41(V) 2 A | 0.2 – 2 | ±0.15 |
41(V) 1 1 | 41(V) 2 1 | 1 – 5 | ±0.3 |
41(V) 1 2 | 41(V) 2 2 | 1 – 10 | ±0.5 |
41(V) 1 3 | 41(V) 2 3 | 10 – 20 | ±1.0 |
41(V) 1 4 | 41(V) 2 4 | 20 – 50 (1) | ±2.0 |

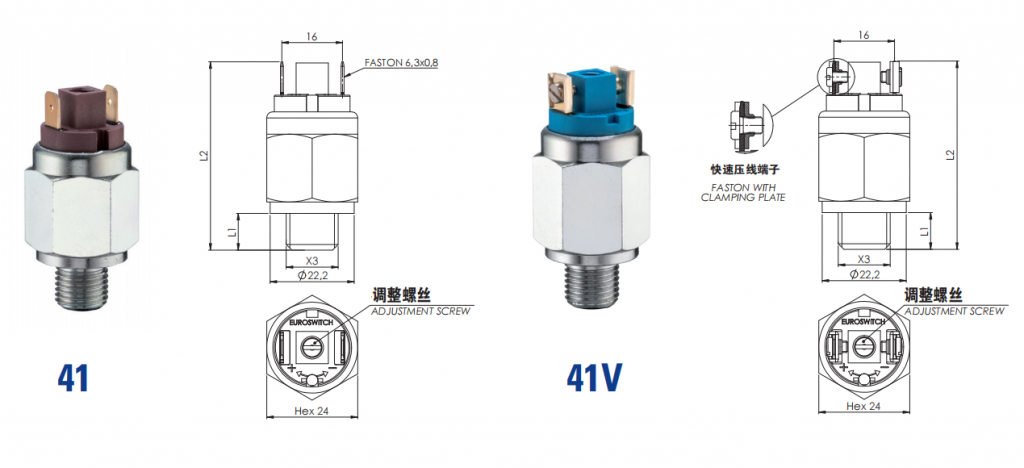

活塞 | Case Material | 螺纹 (X3) Threads (X3) | L1 (mm) | L2 (mm) | 膜片 (见17页) Diaphragms(see page 17) |
---|---|---|---|---|---|
0 镀锌钢体 | 0 Zinc plated steel case | 1 1/8″ Gas圆锥 | 10 | 51 | 1 NBR |
1 黄铜 | 1 Brass | 2 1/4″ Gas圆锥 | 12 | 53 | 2 FKM (标准) |
2 AISI 316 *不锈钢 | 2 Stainless steel AISI 316 * | 3 M10x1K圆锥 | 10 | 51 | 3 EPDM CH |
5 AISI 303 *不锈钢 | 5 Stainless steel AISI 303 * | 4 M12x1,5圆柱 | 9 | 50 | 4 CR |
5 1/8″ NPT | 10 | 51 | 5 硅酮 | ||
6 1/4″ Gas圆柱 | 9,7 | 50,7 | 6 HNBR | ||
8 M10x1圆柱 | 9,5 | 50,5 | |||
G 1/8″ Gas圆柱 | 10 | 51 |
(1) 仅适用于镀锌本体 – Available only with body Zinc plated or Stainless steel
*标准G 1/4″ 圆柱 *Standard G1/4″ cylindrical
中文参数 | 中文说明 | 英文参数 | 英文说明 |
---|---|---|---|
电触点 | 镀银 AgNi(可要求镀金) | Electric contacts | Silver AgNi, (gold plated on request) |
电流状态 | 常开(紫色) 常闭(蓝色) | Electrical conditions | N.O. (bordeaux) N.C. (blu) |
最大开关电压 | 48 Vac / dc | Max switches voltage | 48 V ac / dc |
最大开关电流 | 0.5A(可要求2A) | Max switches current | 0.5 A (2A on request) |
液体最高温度 | 80°至120°C(根据膜片) | Max fluid temperature | 80° to 120°C (depending on diaphragm) |
机械工作寿命 | 10⁶活塞版本 | Mechanical working life | 10⁶ operations |
电气工作寿命 | 10⁵活塞版本 | Electrical working life | 10⁵ operations |
最大超压限制 | 镀锌钢 / 不锈钢 300巴 黄铜 80巴 |
Max Overpressure limit | Zinc plated steel / Stainless steel 300 bar Brass 80 bar |
最大工作压力 | 镀锌钢 / 不锈钢 150巴 黄铜 40巴 |
Max Working pressure | Zinc plated steel / Stainless steel 150 bar Brass 40 bar |
启动条件 | 1B | Action type | 1B |
防护等级 | IP00(见 18 – 20页保护盖和连接器) | Protection degree | IP 00 (see pages 18 – 20 for protection caps and connectors) |
重量 | ~ 65 g | Weight | ~65 g |
