代码 Part Number	测量范围 (巴) Measuring range (bar)	最大工作压力 Overload pressure	最大超压限制 Safety pressure
ESP00202610V	-1 ÷ 9	20	35
ESP002026020	0 ÷ 2	4	8
ESP002026100	0 ÷ 10	20	35
ESP002026160	0 ÷ 16	40	60
ESP002026200	0 ÷ 20	60	100
ESP002026250	0 ÷ 25	60	100
ESP002026500	0 ÷ 50	100	140
ESP00202610D	0 ÷ 100	200	400
ESP00202616D	0 ÷ 160	300	450
ESP00202620D	0 ÷ 200	400	600
ESP00202625D	0 ÷ 250	500	650
ESP00202640D	0 ÷ 400	550	700
ESP00202660D	0 ÷ 600	750	900

使用	工业应用	Use	Industrial applications
传感器	陶瓷元件	Sensor	ceramic element
输出	4…20 mA	Output	4…20 mA
精度	≤1% (Span) (BSFL – IEC 61298 – 2) 非线性+迟滞+重复性	Accuracy	≤1% (Span) (BSFL – IEC 61298 – 2) Non linearity + Hysteresis + Repeatability
响应时间	≤ 4 ms (90% of F.S.)	Response time	≤ 4 ms (90% of F.S.)
温度漂移	最高+/- 1.5%，范围10-50°C（跨度）	Thermal drift	+/- 1,5% max in range 10-50°C (Span)
机体	316L不锈钢(可定制)	Material Case	stainless steel 316L (others on request)
与工作流体接触的材料	不锈钢, 陶瓷和FPM密封	Material medium wetted parts	stainless steel, ceramic and sealing FPM

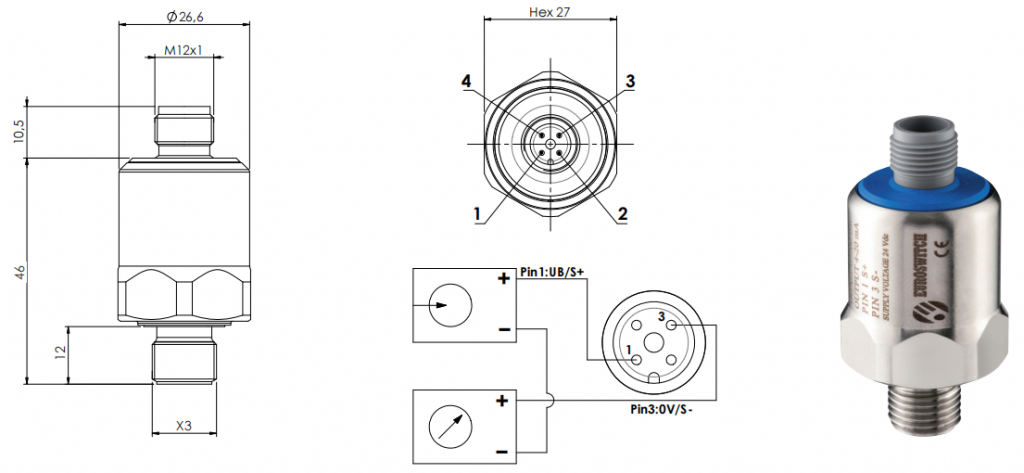

螺纹 (X3)	G 1/4″ 符合DIN 3852-E规定 可定制	Thread (X3)	G 1/4″ according to DIN 3852-E others on request
最大扭力	20 Nm (建议)	Tightening torque	20 Nm (recommended)
电气连接	连接器 M12x1	Electrical connection	connector M12x1
防护等级	IP 67	Protection degree	IP 67
电压	8…30 Vdc RL max = 50 Vcc – 400 – RL min = 50 Vcc – 750	Supply voltage	8…30 Vdc RL max = 50 Vcc – 400 – RL min = 50 Vcc – 750
电流消耗	≤ 25 mA	Current consumption	≤ 25 mA
温度范围 – 补偿温度	0…80°C	TEMPERATURE RANGES – compensated	0…80°C
温度范围 – 储存温度	-20…80°C (可选: -40 ÷ +125°C)	TEMPERATURE RANGES – storage	-20…80°C (Option: -40 ÷ +125°C)
温度范围 – 调节螺丝	0…80°C (可选: -40 ÷ +105°C)	TEMPERATURE RANGES – media	0…80°C (Option: -40 ÷ +105°C)
温度范围 – 室温	0…80°C	TEMPERATURE RANGES – ambient	0…80°C
预期寿命	> 1000万次循环	Life expectancy	> 10 million cycles
重量	~ 80g	Weight	~ 80g
