套管	黄铜套管	Case	Brass body
材质	PA 6.6	Support material	PA 6.6
触点	常开（可要求常闭）	Contact	N.O. (on request N.C.)
介入温度	30 ÷ 130°C	Temp. intervention	30 ÷ 130°C
介入公差	+/- 5 K	Intervention tolerance	+/- 5 K
误差	10 ÷ 20K	Differential	10 ÷ 20K
工作电压	6 ÷ 24 Vdc	Working voltage	6 ÷ 24 Vdc
最大电流	300 mA	Max resistive current	300 mA

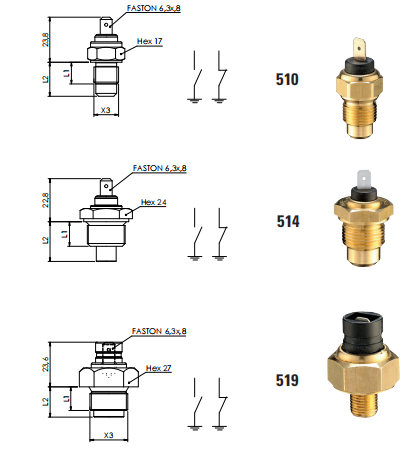

拧紧扭矩	510 – ch. 17 12 Nm 514 – ch. 24 519 – ch. 27 30 Nm	Tightening torque	510 – ch. 17 12 Nm 514 – ch. 24 519 – ch. 27 30 Nm
电气连接	快速端子 6,3×0,8	Electrical connection	male faston 6,3×0,8
温度变化率	1÷2 K/分钟	Temperature changerate	1 ÷ 2 K/min
螺纹(X3)和L-L1值	根据要求	Threads (X3) and L1 – L2	(on request)
防护等级	IP00保护盖（请见第8页）	Protection degree	IP 00 cap (see p. 8)
污染情况	正常	Pollution situation	normal
驱动类型	1B	Action type	1B
