EUROSWITCH销售中心
| 电气规格 | ELECTRICAL SPECIFICATIONS | |
|---|---|---|
| PIN1 | 1V PLUS | 1V PLUS |
| PIN2 | 未连接 | Floating |
| PIN3 | GND | GND |
| PIN4 | CQ | CQ |
| PIN5 | 未连接 | Floating |
| 使用 | 工业应用 | Use | Industrial applications |
|---|---|---|---|
| 流体 | 油、水性润滑冷却液、水、柴油 | Fluids | Oils, water based coolants, water, diesel |
| 输出信号 | IO-Link | Output signal | IO-Link |
| 电源电压 | 24±10% | Supply voltage | 24±10% |
| 极性换向保护 | Reverse polarity protection | ||
| 套管 | AISI 316 | Case | AISI 316 |
| 工作温度 | -25 / + 95°C | Working temperature | -25 / +95°C |
| 防护等级 | IP65 / IP67 | Protection degree | IP65 / IP67 |
| 电气连接 | M12 | Electrical connection | M12 |
| 最大拧紧扭矩 | 50 Nm | Max Torque | 50 Nm |

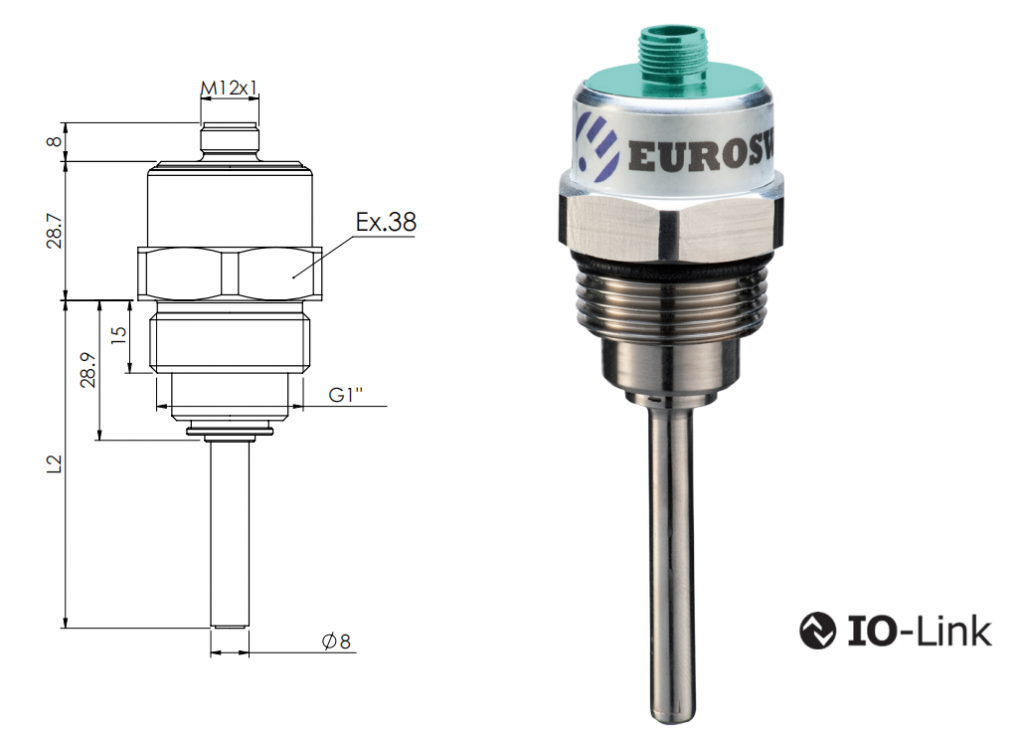

| 长度L2 mm | 85 – 100 – 150 – 200 – 250 – 300 – 350 | Lenghts L2 mm | 85 – 100 – 150 – 200 – 250 – 300 – 350 |
