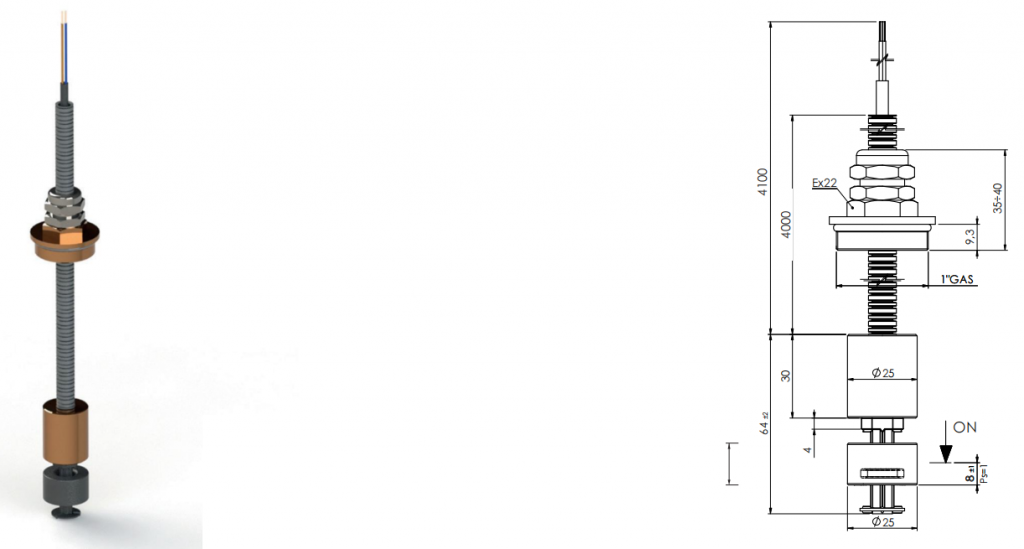

CODICE – PART NUMBER
IMK221 – 100
Per passare da N.C. a N.A. è sufficiente capovolgere il galleggiante The contact can be converted from N.C. to N.O. by rotating the float upside down
Il collegamento a terra deve essere garantito dal sistema di montaggio Grounding must be fasten by assembling system

使用范围	矿物油 – 柴油 – 石化油	Use	Mineral Oils – Diesel fuel – Petrol
杆	尼龙	Stem	Nylon
固定	G 1″ 黄铜	Fixing	G 1″ brass
波纹软管	L=4mt PVC	Corrugated flexible tube	L=4mt PVC
浮球	丁腈橡胶	Float	NBR
液体比重	> 0,7	Fluid specific weight	> 0,7
螺帽	尼龙	Nut	Nylon
电气连接	2 x 0,2 mm²	Electrical connect	2 x 0,2 mm²
触点类型	簧片 开 / 关 (SPDT)	Type of contact	Reed N.O./ N.C.(SPDT)
配重	黄铜	Counterweight	Brass
O环	丁腈橡胶	O-Ring	NBR
开关最大容量	40 W – (3 W SPDT)	Max switch. capacity	40 W – (3 W SPDT)
开关最大电流	1 A – (0,25 A SPDT)	Max switch. current	1 A – (0,25 A SPDT)
开关最大电压	50 V	Max switch. voltage	50 V
工作温度	-10°C / +100°C	Working temperature	-10°C / +100°C
