| 零件代码 – PART NUMBER | |
|---|---|
| n°开关数量 n° of switches |
|
| 1 | IMK021 – 101 |
| 2 | IMK021 – 102 |
| 3 | IMK021 – 103 |
| 4 | IMK021 – 104 |
| 5 | IMK021 – 105 |

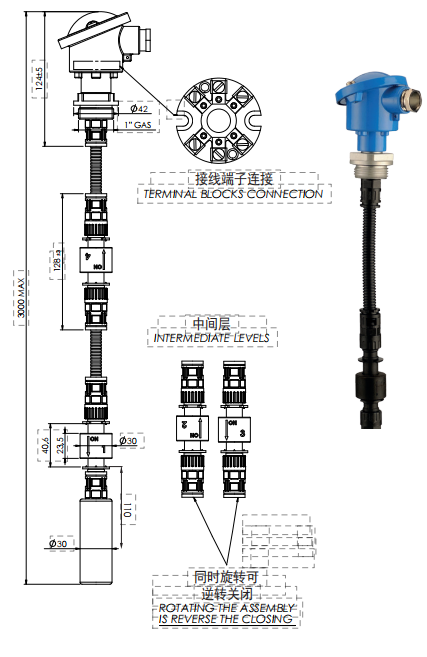

| *翻转浮球可切换关/开 *The contact can be converted from N.C. to N.O. by rotating the float upside down excluding minimum level |
|
| 使用范围 | 矿物油 – 汽油 | Use | Mineral oils – Fuel |
|---|---|---|---|
| 杆 | 尼龙 | Stem | Nylon |
| 固定 | 1″ gas法兰 | Fixing | 1″ gas Al flange |
| 软管 | 尼龙 | Flexible tube | Nylon |
| 浮球 | 丁腈橡胶 | Float | NBR |
| 保护等级 | IP65 | Protection degree | IP65 |
| 液体比重 | > 0.6 | Fluid specific weight | > 0.6 |
| 导师（可能翻译有误，推测类似部件名称） | 尼龙 | Seeger | Nylon |
| 连接 | 尼龙 | Connection | Nylon |
| 电气连接 | 接线端子DINB | Electrical connection | Terminal blocks DINB |
| 触点类型 | 簧片 | Type of contact | Reed |
| 配重 | AISI 303 – h 80 | Counterweight | AISI 303 – h 80 |
| 开关最大容量 | 12 W/VA | Max switch. capacity | 12 W/VA |
| 开关最大电流 | 1A | Max switch. current | 1A |
| 开关最大电压 | < 50 | Max switch. voltage | < 50 |
| 工作温度 | -10/+80°C | Working temperature | -10/+80°C |
