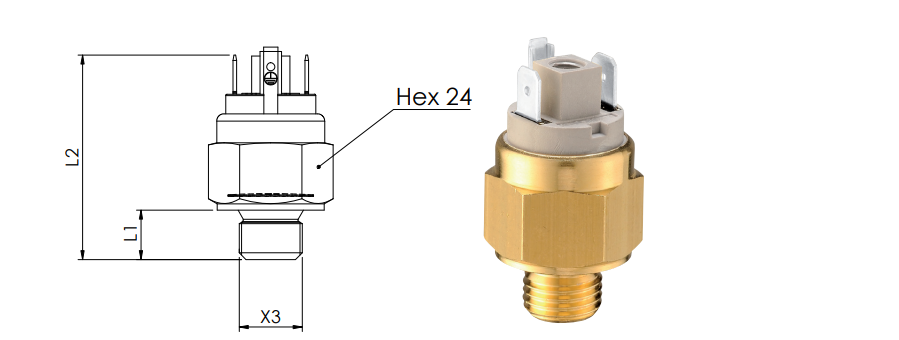

| 螺纹 (X3) | Threads (X3) | L1 | L2 (mm) | 温度 |
|---|---|---|---|---|
| 01 1/4″ G | 01 1/4″ G | 9,7 | 44,7 | 从 25°C 到 120°C from 25° to 120°C 间隔 5°C with intervals of 5°C |
| 02 3/8″ G | 02 3/8″ G | 11 | 46 | 从 25°C 到 120°C from 25° to 120°C 间隔 5°C with intervals of 5°C |
| 05 M14x1,5 | 05 M14x1,5 | 11 | 46 | 从 25°C 到 120°C from 25° to 120°C 间隔 5°C with intervals of 5°C |
| 16 M16x1,5 | 16 M16x1,5 | 11 | 46 | 从 25°C 到 120°C from 25° to 120°C 间隔 5°C with intervals of 5°C |
| 07 M22x1,5 | 07 M22x1,5 | 11 | 46 | 从 25°C 到 120°C from 25° to 120°C 间隔 5°C with intervals of 5°C |
| 08 1/2″ G | 08 1/2″ G | 11 | 46 | 从 25°C 到 120°C from 25° to 120°C 间隔 5°C with intervals of 5°C |
| 套管 | 黄铜（根据要求，不锈钢） | Case | Brass (stainless steel on request) |
|---|---|---|---|
| 电气情况 | 常开（灰色）或常闭（黑色） | Electrical condition | N.O. (grey) or N.C. (black) |
| 误差 | 7 / 13 K | Differential | 7 / 13 K |
| 介入公差 | +/- 5K | Intervention tolerance | +/- 5K |
| 电气特性 | 10 (4) A / 12Vac 10 (3) A / 24Vac 12 (2) A / 125Vac 10 (1) A / 250Vac 2 A / 12Vdc |
Electrical characteristics | 10 (4) A / 12Vac 10 (3) A / 24Vac 12 (2) A / 125Vac 10 (1) A / 250Vac 2 A / 12Vdc |
| 最高环境温度 | +120°C | Max ambient temperature | +120°C |
| 周期次数 | 100.000 | Number of cycles | 100.000 |
| 每分钟周期次数 | 最多5次 | Number of cycles/minute | max 5 |
| 突动触点 | Snap action contact | ||
| 温度变化率 | 1÷2 K/分钟 | Temp. change rate | 1÷2 K/min |
| 最大拧紧扭矩 | 40 Nm | Tightening torque max | 40 Nm |
| 连接 | Faston公端 6,3 x 0,8和接地 | Connection | faston male 6,3 x 0,8 and grounding |
| 防护等级 | IP00 带防护盖 3015001: IP54（见11页） 带防护盖 3900001: IP65（见11页） 带防护盖3900200: IP65（见11页） 带树脂密封电缆: IP67（见11页） |
Protection degree | IP00 with cap.3015001: IP54 (see p. 15) with cap.3900001: IP65 (see p. 15) with cap.3900200: IP65 (see p. 15) with cable sealed by resin: IP67 (see p. 15) |
| 最大压力 | 80 bar（可根据要求订制） | Max Pressure | 80 bar (other value on request) |
| 重量 | ~ 50gr | Weight | ~ 50gr |
