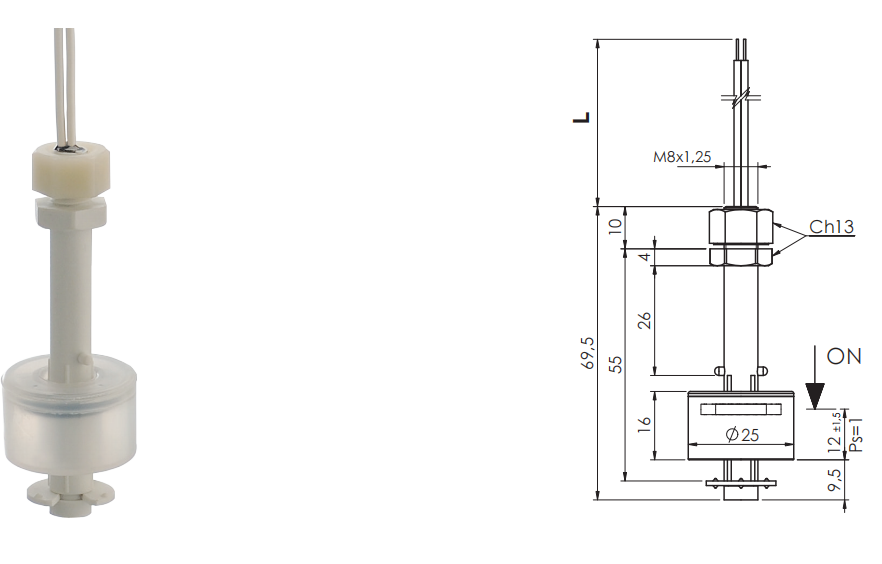

零件代码 – PART NUMBER

电气连接 Electrical connection
	橙色或黑色 ORANGE OR BLACK	关 白色或蓝色 NC WHITE OR BLUE 开 棕色 / NO BROWN
L = 500 mm 线/wires	P004AC – 100	P004AC – 500
L = 1 mt 缆线/cable	P004AC – 110	P004AC – 510
L = 2 mt 缆线/cable	P004AC – 120	P004AC – 520

翻转浮球可切换关/开 The contact can be converted from N.C. to N.O. by rotating the float upside down

SPDT触电 – SPDT Contact

零件代码 – PART NUMBER

电气连接 Electrical connection
	橙色或黑色 ORANGE OR BLACK	关 白色或蓝色 NC WHITE OR BLUE 开 棕色 / NO BROWN
L = 500 mm 线/wires	P004AC – 100	P004AC – 500
L = 1 mt 缆线/cable	P004AC – 110	P004AC – 510
L = 2 mt 缆线/cable	P004AC – 120	P004AC – 520

翻转浮球可切换关/开 The contact can be converted from N.C. to N.O. by rotating the float upside down

SPDT触电 – SPDT Contact
